(Solved): 6. A cylindrical \( \log \) of diameter \( D \) and length \( L \) into the paper dams water of de ...

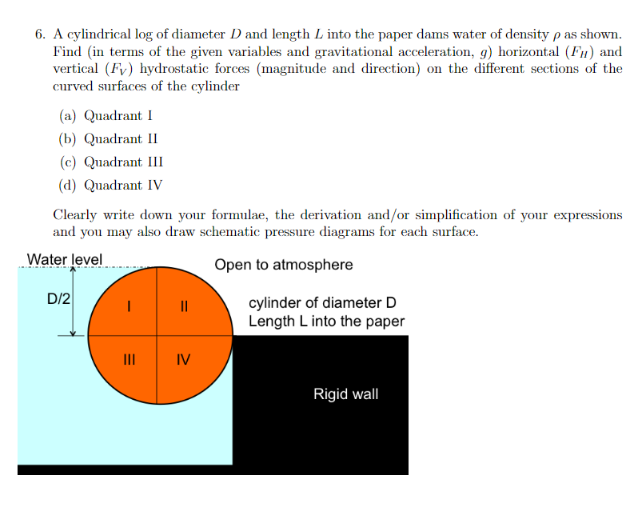

6. A cylindrical \( \log \) of diameter \( D \) and length \( L \) into the paper dams water of density \( \rho \) as shown. Find (in terms of the given variables and gravitational acceleration, \( g \) ) horizontal \( \left(F_{H}\right) \) and vertical \( \left(F_{V}\right) \) hydrostatic forces (magnitude and direction) on the different sections of the curved surfaces of the cylinder (a) Quadrant I (b) Quadrant II (c) Quadrant III (d) Quadrant IV Clearly write down your formulae, the derivation and/or simplification of your expressions and you may also draw schematic pressure diagrams for each surface.
