(Solved): 4) A sharp-edged splitter plate inserted part way into a flat stream of flowing water produces the ...

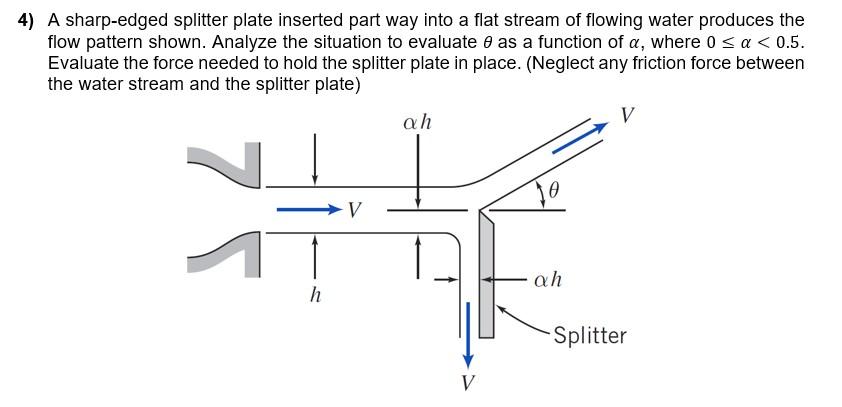

4) A sharp-edged splitter plate inserted part way into a flat stream of flowing water produces the flow pattern shown. Analyze the situation to evaluate $$?$$ as a function of $$?$$, where $$0??<0.5$$. Evaluate the force needed to hold the splitter plate in place. (Neglect any friction force between the water stream and the splitter plate)
