(Solved): 4/16 The rectangular frame is composed of four perimeter two-force members and two cables AC and B ...

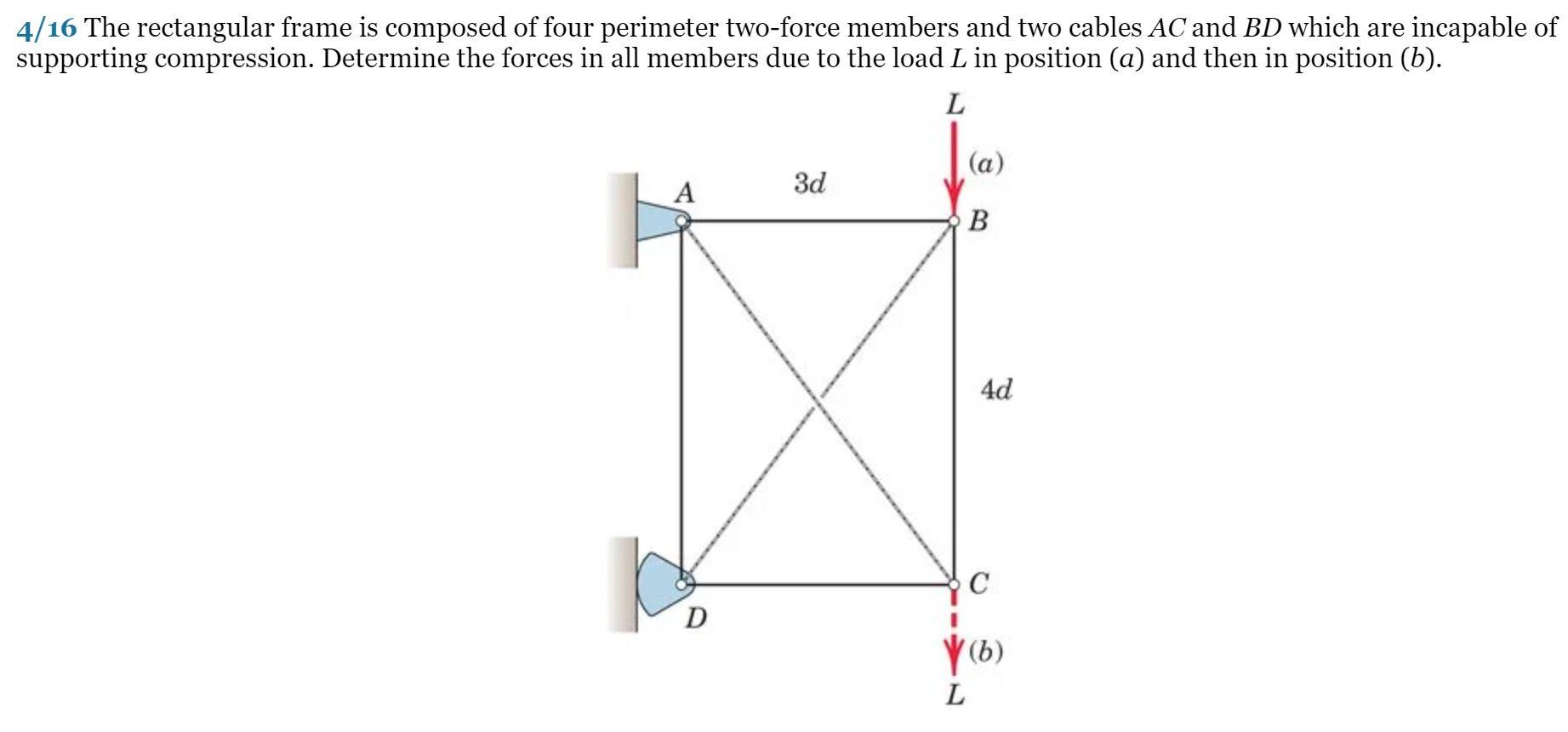

4/16 The rectangular frame is composed of four perimeter two-force members and two cables AC and BD which are incapable of supporting compression. Determine the forces in all members due to the load L in position (a) and then in position (b). L A D 3d L (a) B 4d C (6)
Expert Answer
*SOLUTION*: The rectangular frame above consist of four perimeter two-face members and two cables AC and BD which are incapable of supporting compression. Here in this problem we need to determine the forces in all members due to the load L in positi
