(Solved): 3. Solve for the following frame using the Method of Virtual Work. Please solve for the vertical an ...

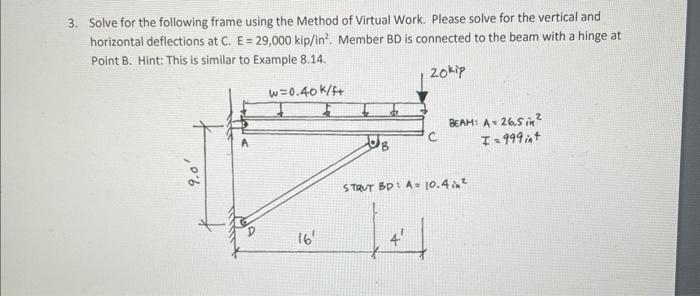

3. Solve for the following frame using the Method of Virtual Work. Please solve for the vertical and horizontal deflections at \( C \). \( E=29,000 \mathrm{kip} / \mathrm{in}^{2} \). Member \( B D \) is connected to the beam with a hinge at Point B. Hint: Thic is cimilar to Examnle 8.14.
