(Solved): (20 pts) Consider an NPN Bipolar Junction Transistor for the follwoing questions. a. Draw and label ...

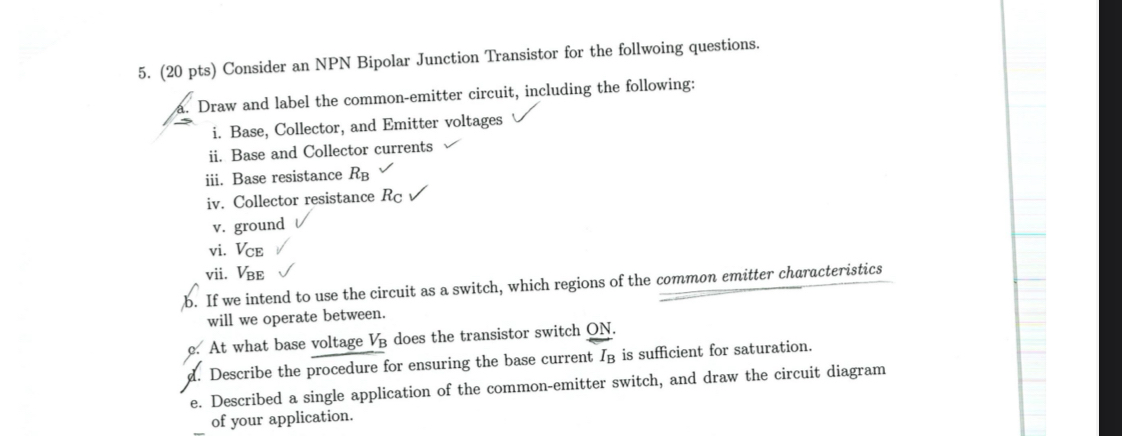

(20 pts) Consider an NPN Bipolar Junction Transistor for the follwoing questions. a. Draw and label the common-emitter circuit, including the following: i. Base, Collector, and Emitter voltages ii. Base and Collector currents iii. Base resistance
R_(B)iv. Collector resistance
R_(C)v. ground vi.
V_(CE)vii.
V_(BE)b. If we intend to use the circuit as a switch, which regions of the common emitter characteristics will we operate between. c. At what base voltage
V_(B)does the transistor switch ON. d. Describe the procedure for ensuring the base current
I_(B)is sufficient for saturation. e. Described a single application of the common-emitter switch, and draw the circuit diagram of your application.
