(Solved): 2. The handle of the hammer is subjected to the force of F=30N as shown in the figure. a. Sketch ...



2. The handle of the hammer is subjected to the force of \( F=30 \mathrm{~N} \) as shown in the figure.
a. Sketch the \( x y

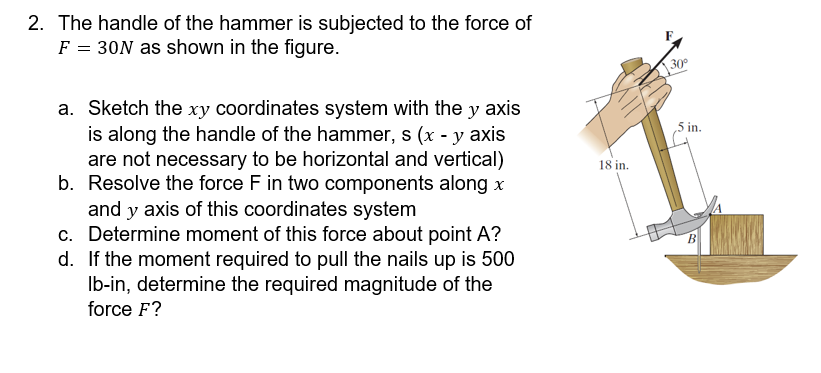

2. The handle of the hammer is subjected to the force of as shown in the figure. a. Sketch the coordinates system with the axis is along the handle of the hammer, axis are not necessary to be horizontal and vertical) b. Resolve the force in two components along and axis of this coordinates system c. Determine moment of this force about point ? d. If the moment required to pull the nails up is 500 Ib-in, determine the required magnitude of the force ?


We have an Answer from Expert

View Expert Answer

Expert Answer


Solution:F5 inyAx18 inCF5 inyAx18 inCBthe cartesian force vector is:F=F(cos?30?i+sin?30?j) =30cos?30?i+30sin?30?jF=25.9
