(Solved): 2. The circuit below is designed to convert a 4-bit binary input called sw(3:0) into BCD. Four bits ...

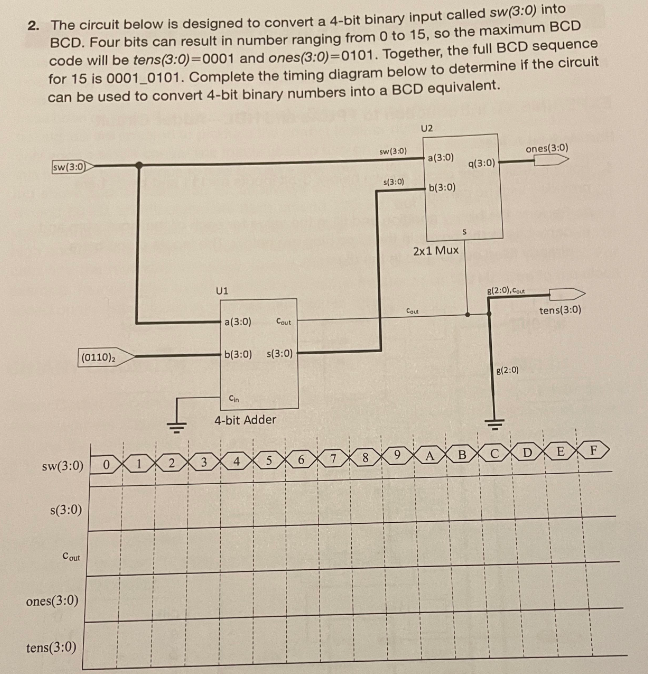

2. The circuit below is designed to convert a 4-bit binary input called $sw(3:0)$ into $BCD$. Four bits can result in number ranging from 0 to 15 , so the maximum $BCD$ code will be tens $(3:0)=0001$ and ones $(3:0)=0101$. Together, the full BCD sequence for 15 is 0001_0101. Complete the timing diagram below to determine if the circuit non ha iced to convert 4-bit binarv numbers into a BCD equivalent.
