(Solved): 2 More forming compound logic gates Considering figure 2, answer the following questions. A. What i ...

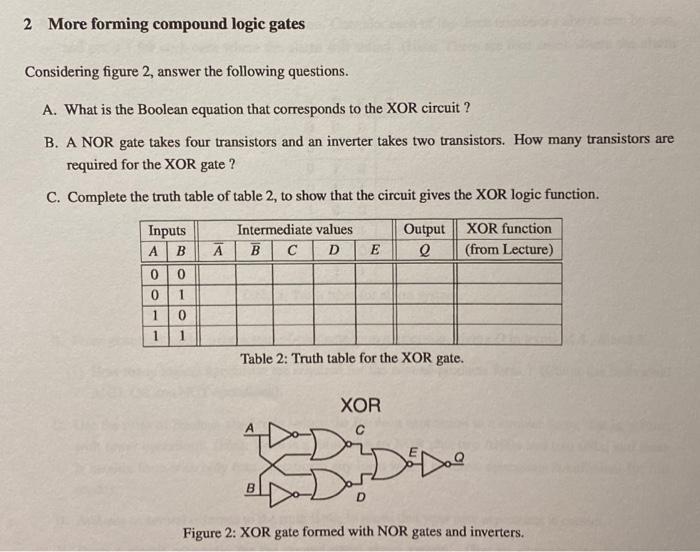

2 More forming compound logic gates Considering figure 2, answer the following questions. A. What is the Boolean equation that corresponds to the XOR circuit ? B. A NOR gate takes four transistors and an inverter takes two transistors. How many transistors are required for the XOR gate? C. Complete the truth table of table 2, to show that the circuit gives the XOR logic function. Table 2: Truth table for the XOR gate. Figure 2: XOR gate formed with NOR gates and inverters.
