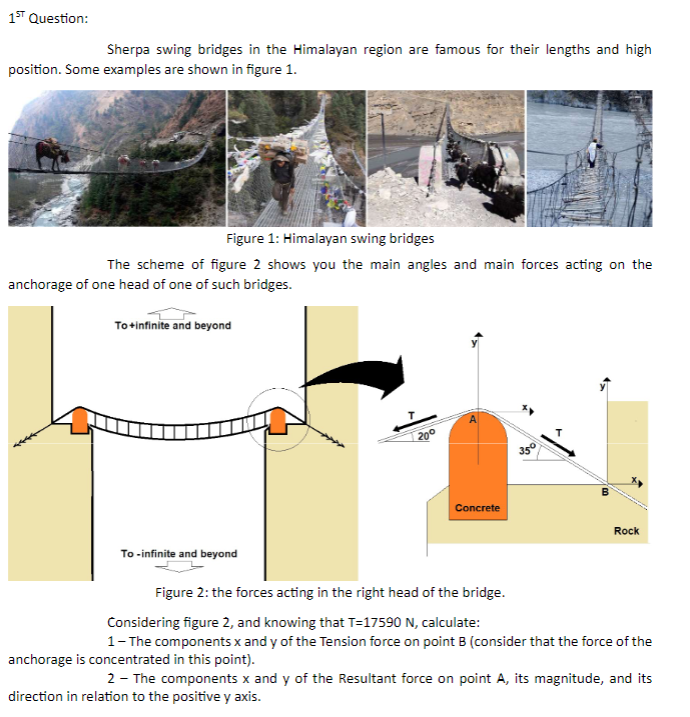

$1^{\text{ST }}$ Question: Sherpa swing bridges in the Himalayan region are famous for their lengths and high position. Some examples are shown in figure 1. Figure 1: Himalayan swing bridges The scheme of figure 2 shows you the main angles and main forces acting on the anchorage of one head of one of such bridges. Figure 2: the forces acting in the right head of the bridge. Considering figure 2, and knowing that $\mathrm{T}=17590\mathrm{N}$, calculate: 1 - The components $\mathrm{x}$ and $\mathrm{y}$ of the Tension force on point $\mathrm{B}$ (consider that the force of the anchorage is concentrated in this point). 2 - The components $\mathrm{x}$ and $\mathrm{y}$ of the Resultant force on point $\mathrm{A}$, its magnitude, and its direction in relation to the positive y axis.
