(Solved): 16. The diagram below shows an RC circuit with a 60Hz ac power supply. The chart below the diagr ...

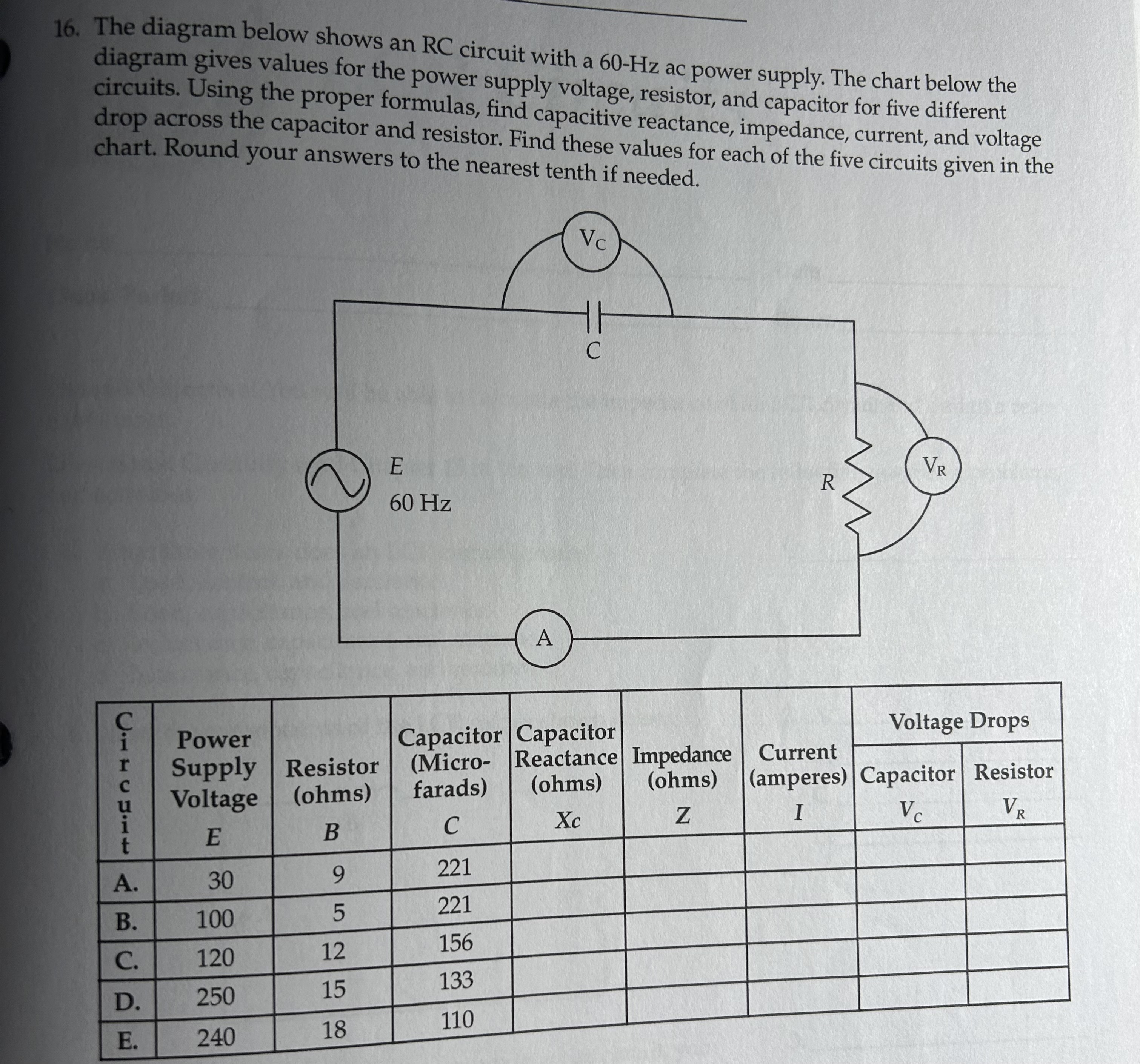

16. The diagram below shows an $\mathrm{RC}$ circuit with a $60?\mathrm{Hz}$ ac power supply. The chart below the diagram gives values for the power supply voltage, resistor, and capacitor for five different circuits. Using the proper formulas, find capacitive reactance, impedance, current, and voltage drop across the capacitor and resistor. Find these values for each of the five circuits given in the chart. Round your answers to the nearest tenth if needed.
