(Solved): [10 pts] Use the following circuit to build a similar ALU-Accumulator circuit but with 8 bits word ...
![[10 pts] Use the following circuit to build a similar ALU-Accumulator circuit but with 8 bits word size instead of 4? (Hint:](https://media.cheggcdn.com/media/936/93692e38-e325-4372-a776-5d3fe7d1cf20/phpacyKnc)

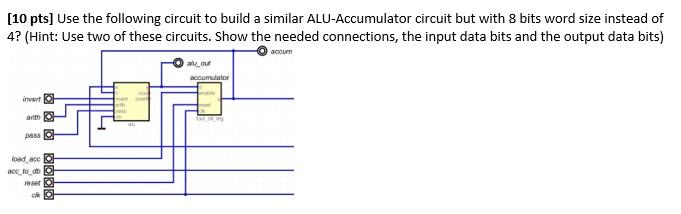

[10 pts] Use the following circuit to build a similar ALU-Accumulator circuit but with 8 bits word size instead of 4? (Hint: Use two of these circuits. Show the needed connections, the input data bits and the output data bits)
Expert Answer
For the given circuit we can build a similar ALU-Accumulator circuit with 8-bit word size instead of 4. Verilog Code:-`timescale 1ns / 100psmodule vsc
