1. The variable resistor ( R ) in the circuit below (see Figure 1 ) is varied until ( V_{X}=6 mathrm{~V} ). What is the numerical value of ( R ? ) Hint: You should be able to solve this problem by using individual KCL or KVL steps, with each step yielding an equation with only 1 unknown that can be solved for (i.e. there is ( N O ) need solutionspile.com

Question

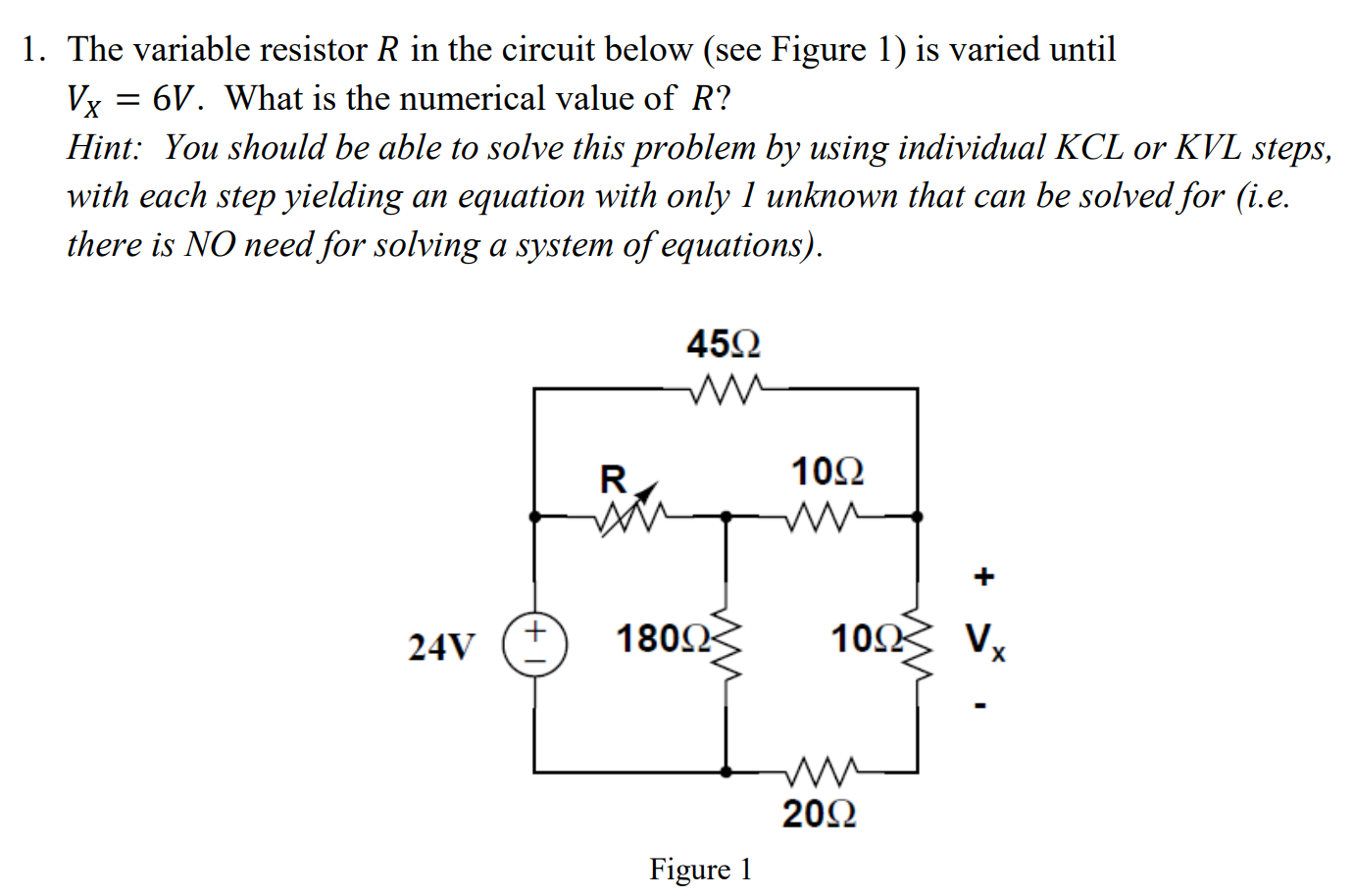

1. The variable resistor  ( R  ) in the circuit below (see Figure 1 ) is varied until  ( V_{X}=6  mathrm{~V}  ). What is the numerical value of  ( R ?  ) Hint: You should be able to solve this problem by using individual KCL or KVL steps, with each step yielding an equation with only 1 unknown that can be solved for (i.e. there is  ( N O  ) need for solving a system of equations). Figure 1 solutionspile.com
