(Solved): 1) Select a single-angle tension member of A36 steel to resist the following service loads: dead l ...

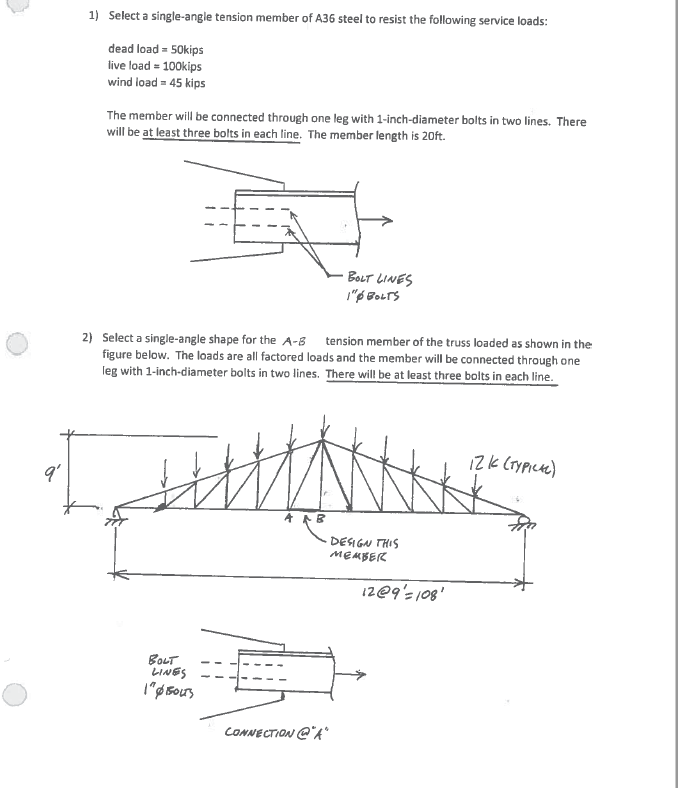

1) Select a single-angle tension member of A36 steel to resist the following service loads: dead load \( =50 \mathrm{kips} \) live load \( =100 \mathrm{kips} \) wind load \( =45 \mathrm{kips} \) The member will be connected through one leg with 1-inch-diameter bolts in two lines. There will be at least three bolts in each line. The member length is \( 20 \mathrm{ft} \). 2) Select a single-angle shape for the \( A-B \) tension member of the truss loaded as shown in the figure below. The loads are all factored loads and the member will be connected through one leg with 1-inch-diameter bolts in two lines. There will be at least three bolts in each line.
