1. For the fixed-bias configuration of Fig. 7.75: a. Sketch the transfer characteristics of the device. b. Superimpose the network equation on the same graph. c. Determine Ipo and VDSQ d. Using Shockley's equation, solve for ID and then find VDSQ. Compare with the solutions of part (c). 14 V IDSS = 12 mA Vp = -4 V 1 ?? 1.5 V- 1.8 ?? IDQ VDSQ FIG. solutionspile.com

Question

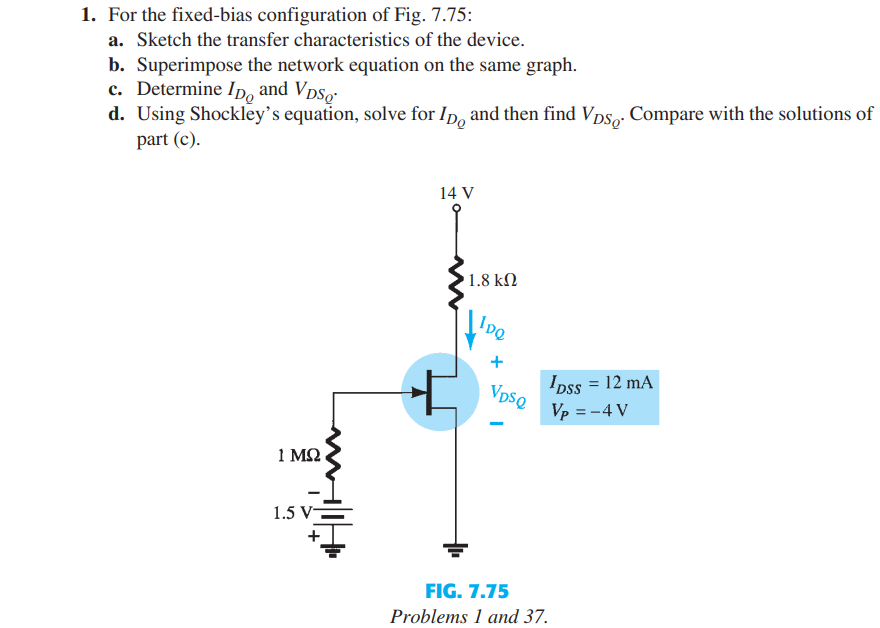

1. For the fixed-bias configuration of Fig. 7.75: a. Sketch the transfer characteristics of the device. b. Superimpose the network equation on the same graph. c. Determine Ipo and VDSQ d. Using Shockley's equation, solve for ID and then find VDSQ. Compare with the solutions of part (c). 14 V IDSS = 12 mA Vp = -4 V 1 ?? 1.5 V- 1.8 ?? IDQ VDSQ FIG. 7.75 Problems 1 and 37. solutionspile.com
