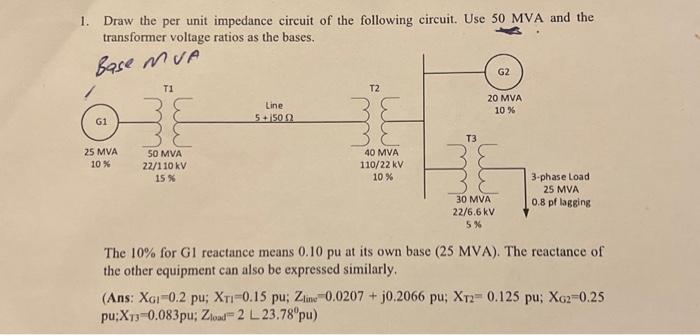

1. Draw the per unit impedance circuit of the following circuit. Use 50 MVA and the transformer voltage ratios as the bases. The 10 for ( mathrm{G} 1 ) reactance means ( 0.10 mathrm{pu} ) at its own base (25 MVA). The reactance of the other equipment can also be expressed similarly. (Ans: ( X_{ mathrm{G} 1}=0.2 mathrm{pu} ; mat solutionspile.com

Question

student submitted image, transcription available below

1. Draw the per unit impedance circuit of the following circuit. Use 50 MVA and the transformer voltage ratios as the bases. The \

10

for \\( \\mathrm{G} 1 \\) reactance means \\( 0.10 \\mathrm{pu} \\) at its own base (25 MVA). The reactance of the other equipment can also be expressed similarly. (Ans: \\( X_{\\mathrm{G} 1}=0.2 \\mathrm{pu} ; \\mathrm{X}_{\\mathrm{T} 1}=0.15 \\mathrm{pu} ; \\mathrm{Z}_{\\mathrm{linv}}=0.0207+\\mathrm{j} 0.2066 \\mathrm{pu} ; \\mathrm{X}_{\\mathrm{T} 2}=0.125 \\mathrm{pu} ; \\mathrm{X}_{\\mathrm{G} 2}=0.25 \\) \\( \\mathrm{pu} ; \\mathrm{X}_{\\mathrm{T3}}=0.083 \\mathrm{pu} ; \\mathrm{Z}_{\\text {load }}=2 \\) L \\( \\left.23.78^{0} \\mathrm{pu}\\right) \\)

Accepted Answer

Expert Answer to -  1. Draw the per unit impedance circuit of the following circuit. Use 50 MVA and the transformer vol

Answer

Solution for -  1. Draw the per unit impedance circuit of the following circuit. Use 50 MVA and the transformer vol

Answer

This an additional answer to -  1. Draw the per unit impedance circuit of the following circuit. Use 50 MVA and the transformer vol
