(Solved): 1) Bibolar junction transistor characteristics are given by the following figure. a) For fixed bias ...

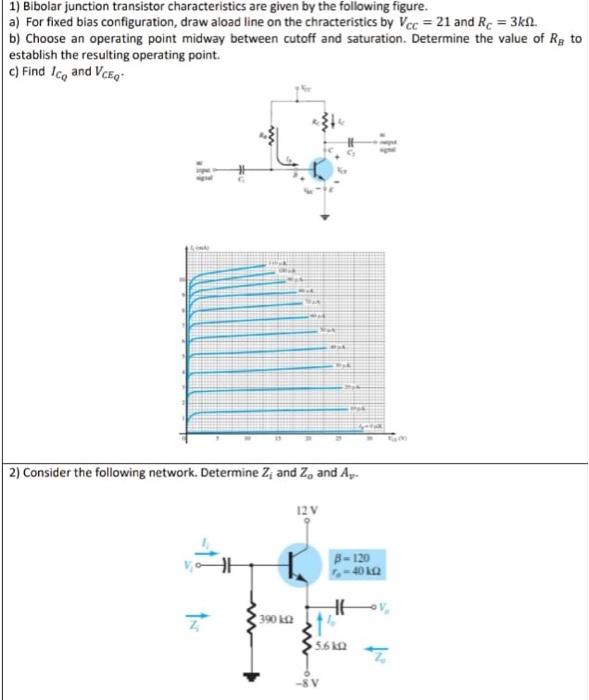

1) Bibolar junction transistor characteristics are given by the following figure. a) For fixed bias configuration, draw aload line on the chracteristics by \( V_{C C}=21 \) and \( R_{C}=3 \mathrm{k} \Omega \). b) Choose an operating point midway between cutoff and saturation. Determine the value of \( R_{B} \) to establish the resulting operating point. c) Find \( I_{C Q} \) and \( V_{C E_{Q}} \). 2) Consider the following network. Determine \( Z_{i} \) and \( Z_{o} \) and \( A_{v} \).
