(Solved): 1. Below is shown the transistor curves for a BJT. a) Identify the three regions of operation (cut ...

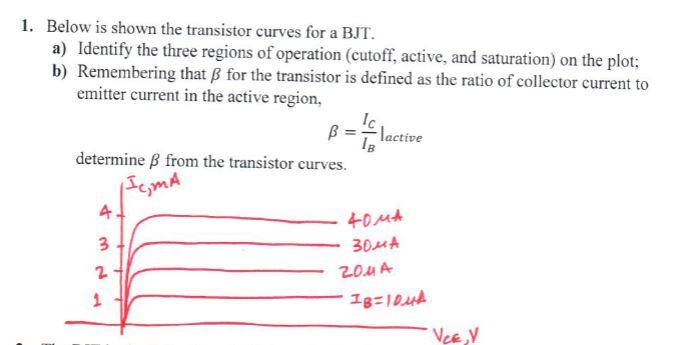

1. Below is shown the transistor curves for a BJT. a) Identify the three regions of operation (cutoff, active, and saturation) on the plot; b) Remembering that ß for the transistor is defined as the ratio of collector current to emitter current in the active region, Blactive IB determine ß from the transistor curves. IC, MA 4 40MA 30?A 32 2 1 204A 18=10uA VCE, V
